Slayer Espresso

Technical Highlights

• Patented needle valve for restricted flow rate aka Pre Brew
• Independent brew and steam tanks
• PID temperature control, adjustable in 0.1° increments
• SSR circuit board for added efficiency and temperature stability
• Electronic V3 grouphead rated to 1 million cycles
• Commercial brew group assembly and portafilter with 58mm, 18-gram basket
• Nanotech-coated precision shower screens
• Handcrafted with wood handles and actuators
• Internal rotary vane pump
• Lifetime/resettable shot counter
• Power switch for easy on/off
• Shot mirror
• Hot water tap

Tank Capabilities

• Brew tank: 1.1 liters
• Steam tank: 3.3 liters
• Pre-heat coil: 60.0 milliliters

Power and Electric

• 110 volts / 15 amps OR 220 volts / 10 amps
• 600-watt brew tank heating element
• 1,300-watt steam tank element for 110-volt option; 2,000-watt for 220-volt option

Installation Requirements

COUNTERTOP

• Minimum load capacity: 70.0 kilograms / 150.0 pounds
• Hole for power/water/ drain: 5.0 centimeters / 2.5 inches diameter

PLUMBING

• Water line: dedicated 3/8-inch British Standard Pipe (BSP), cold with shut-off valve*
• Incoming water pressure: 3-5 Bar / 43-72 PSI
• Incoming flow rate: 1.5 gallons per minute
• Drain: open gravity drain located within 4.0 feet / 1.2 meters
• Included accessories: 5/8-inch / 15.88-millimeter drain hose with hose clamp AND 60-inch x 3/8-inch / 152.4-centimeter x 9.53-millimeter braided steel hose

WATER TREATMENT

• Hardness: not to exceed 50 parts-per-million
• Total dissolved solids: 75-125 parts-per-million

Weight and Dimensions

LENGTH

• Body: 18.1 inches / 46.0 centimeters
• Foot to foot: 17.7 inches / 45.0 centimeters

WIDTH

• Body: 24.3 inches / 61.7 centimeters
• Foot to foot: 17.5 inches / 44.4 centimeters
• Rear panel (top) to disengaged steam actuator (top): 11.2 inches / 28.5 centimeters

HEIGHT

• Top of rear panel: 12.8 inches / 323.8 millimeters
• Top of brew actuator: 13.4 inches / 340.3 millimeters
• Top of engaged steam actuator: 14.5 inches / 368.3 millimeters
• Group height, drip tray to portafilter: 4.7 inches / 119.4 millimeters

WEIGHT

• Dry: 100.0 pounds / 45.5 kilograms
• Wet: 110.0 pounds / 49.9 kilograms
• Shipping: 160.0 pounds / 72.60 kilograms

Machine Manual

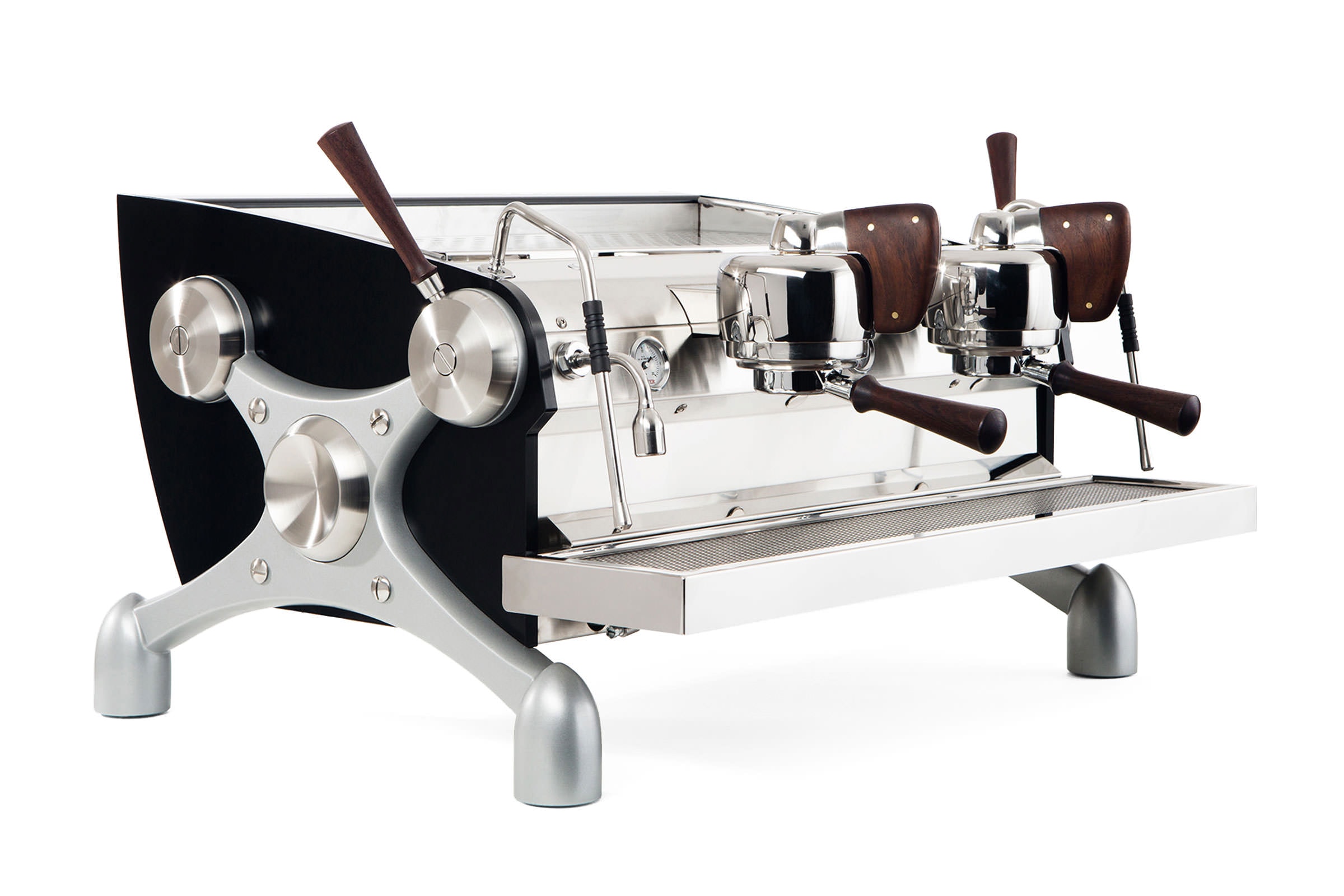

Technical Highlights

• Version 3 groupheads rated to 1 million cycles before maintenance
• Bottomless (“naked”) chrome-plated, brass portafilters
• 58-millimeter portafilter baskets
• Teflon-coated screens shower evenly & clean easily
• Brew temperature PID controllers ensure accuracy within 0.5º F
• Steam and pre-heat Love controller allows quick adjustment
• 1.3-millimeter, 4-hole steam wand tips
• Saturated groups with auto-bleed
• External rotary pump
• Direct plumb only
• Certified ETL Sanitation* (conforms to NSF/ANSI Standard 4)

OPTIONAL

• Pre-brew timers
• Hot water tap
• Custom steam tips
• Double- or single-spouted portafilters
• Lowered drain tray for tall cups

Tank Capabilities

• Steam tank: 7.4 liters
• Brew tanks: 1.2 liters per group (2)
• Pre-heat tank: 3.3 liters

Installation Requirements

COUNTERTOP

• Minimum load capacity: 100.0 kilograms / 220.0 pounds
• Two (2) holes for power/water/ drain: 5.0 centimeters / 2.5 inches diameter

PLUMBING

• Water line: dedicated 3/8-inch British Standard Pipe (BSP), cold with shut-off valve*
• Incoming water pressure: 3-5 Bar / 43-72 PSI
• Incoming flow rate: 1.5 gallons per minute
• Drain: open gravity drain located within 4.0 feet / 1.2 meters

WATER TREATMENT

• Hardness: not to exceed 50 parts-per-million
• Total dissolved solids: 75-125 parts-per-million

*In North America, use 3/8 inch compression to 3/8 inch National Pipe Thread (NPT) male fitting and cross-thread into 3/8 inch BSP water line.

Weight and Dimensions

• Length: 78.7 centimeters / 31.0 inches
• Width: 55.9 centimeters / 22.0 inches*
• Height: 43.2 centimeters / 17.0 inches
• Weight: 90.7 kilograms / 200.0 pounds

*Add 6.4 centimeters / 2.5 inches for portafilter hangover at front.

Power and Electric

• 200-260 volts AC, 50/60 hertz
• Single-phase (three-phase optional)
• 6,300 watts
• 27 amps
• NEMA 6-50 receptacle (included)

Machine Manual

Technical Specifications

INCLUDED

• Version 3 groupheads rated to 1 million cycles before maintenance
• Bottomless (“naked”) chrome-plated, brass portafilters
• 58-millimeter portafilter baskets
• Teflon-coated screens shower evenly & clean easily
• Brew temperature PID controllers ensure accuracy within 0.5º F
• Steam and pre-heat Love controller allows quick adjustment
• 1.3-millimeter, 4-hole steam wand tips
• Saturated groups with auto-bleed
• External rotary pump
• Direct plumb only
• Certified ETL Sanitation* (conforms to NSF/ANSI Standard 4)

OPTIONAL

• Pre-brew timers
• Hot water tap
• Custom steam tips
• Double- or single-spouted portafilters
• Lowered drain tray for tall cups

Tank Capabilities

• Steam tank: 12.0 liters
• Brew tanks: 1.2 liters per group (3)
• Pre-heat tank: 5.4 liters

Power and Electric

• 200-260 volts AC, 50/60 hertz
• Single-phase (three-phase optional)
• 8,000 watts
• 35 amps
• NEMA 6-50 receptacle (included)

Installation Requirements

COUNTERTOP

• Minimum load capacity: 140.0 kilograms / 305.0 pounds
• Two (2) holes for power/water/ drain: 5.0 centimeters / 2.5 inches diameter

PLUMBING

• Water line: dedicated 3/8-inch British Standard Pipe (BSP), cold with shut-off valve*
• Incoming water pressure: 3-5 Bar / 43-72 PSI
• Incoming flow rate: 1.5 gallons per minute
• Drain: open gravity drain located within 4.0 feet / 1.2 meters

WATER TREATMENT

• Hardness: not to exceed 50 parts-per-million
• Total dissolved solids: 75-125 parts-per-million

Weight and Dimensions

• Length: 101.6 centimeters / 40.0 inches
• Width: 55.9 centimeters / 22.0 inches*
• Height: 43.2 centimeters / 17.0 inches
• Weight: 122.5 kilograms / 270.0 pounds
